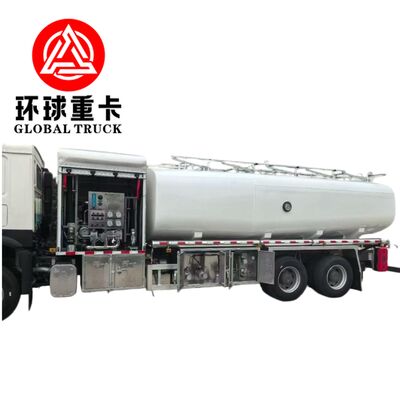

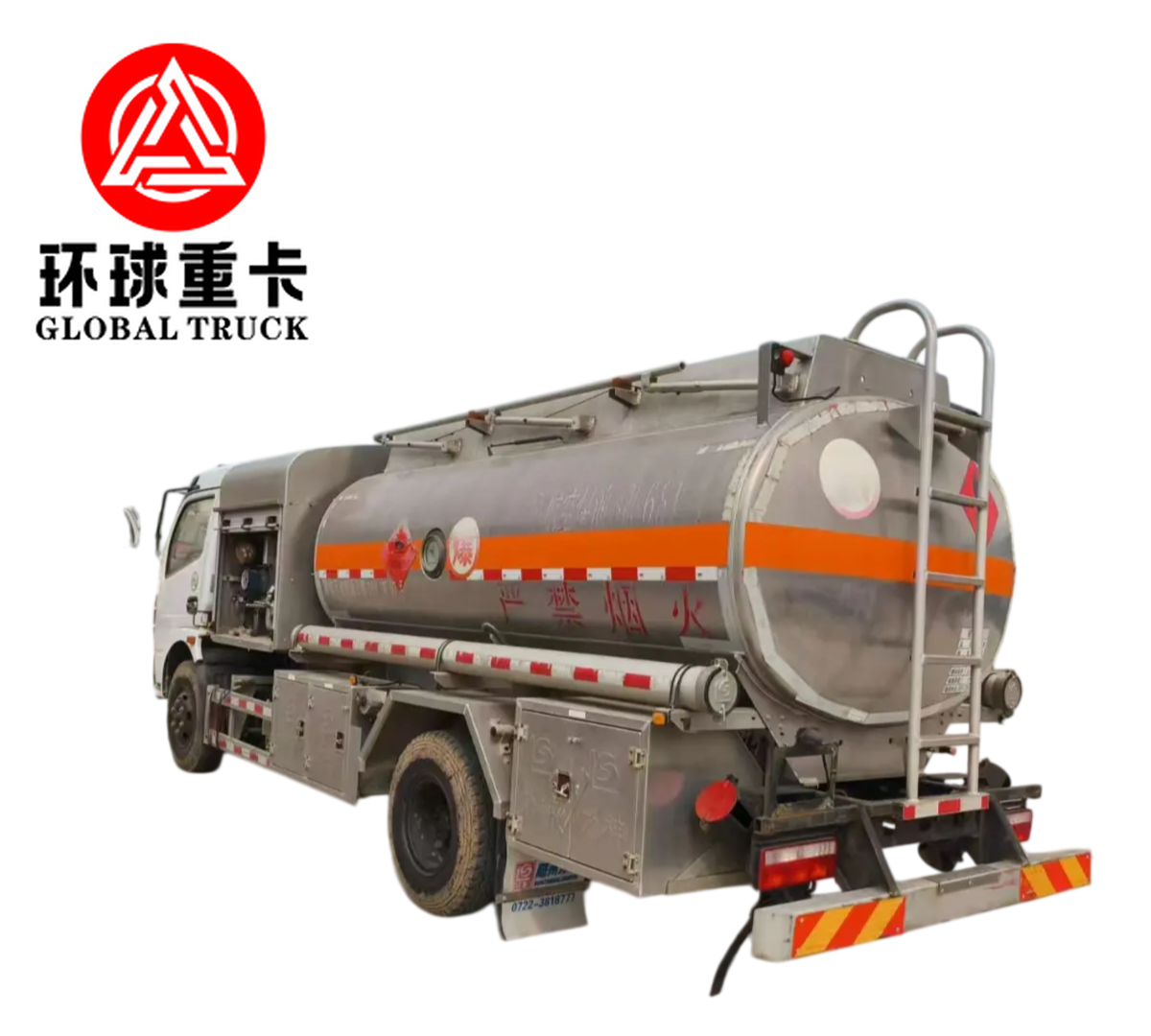

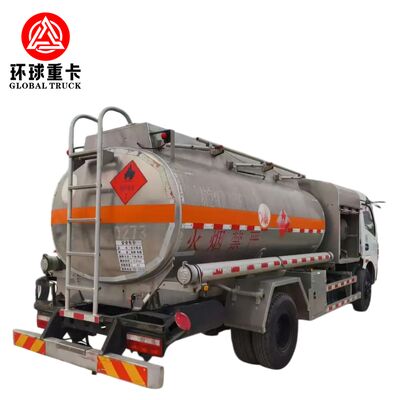

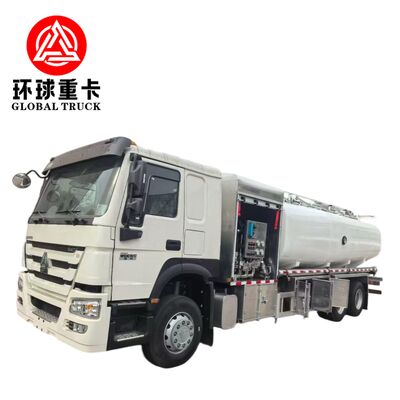

High-End Dongfeng 8000L 10000L 12000L Jet A1 Aircraft Refueling Tank Truck
4×2 Aviation Refueling Truck (Aircraft Fuel Dispenser Vehicle - Jet A-1)
Product Overview
The 4×2 Aviation Refueling Truck is a compact and maneuverable aircraft fuel delivery solution engineered for airport apron operations and aviation fuel logistics. Designed for precise, safe, and contamination-free fueling, this unit integrates advanced filtration, pressure control, and metering systems within a durable tanker structure.
Mounted on a reliable 4×2 chassis platform, the vehicle provides excellent mobility inside airport operational areas while ensuring stable fuel transfer performance. The system is optimized for rapid refueling cycles, minimizing aircraft ground time and maximizing operational efficiency. Suitable for civil aviation, defense applications, charter services, and private jet facilities.
Technical Specifications
Vehicle Platform
- Drive Configuration: 4×2
- Engine Output: 160-240 HP
- Emission Level: Euro III / Euro V / customizable
- Gearbox: Manual transmission, 6-8 speeds
- Wheelbase: 3,600-4,500 mm
- Braking System: Dual-circuit air brake
- Max Speed: 85 km/h
- Power Take-Off (PTO): Equipped for pump drive
Tank System
- Tank Volume Range: 6,000 - 15,000 Liters
- Tank Construction: Aluminum alloy preferred / Carbon steel optional
- Tank Compartments: Single or multiple compartments
- Internal Baffles: Installed for surge control
- Surface Treatment: Anti-corrosion coating
- Manhole Assembly: Aviation-standard sealed manhole
- Overfill Protection: Mechanical or electronic
Fuel Transfer & Dispensing System
- Pump Type: Aviation-grade centrifugal pump
- Rated Flow Capacity: 800-1,200 L/min
- Working Pressure Range: 0.25-0.45 MPa
- Filtration Unit: Two-stage filter separator with water absorption element
- Filtration Efficiency: Solid particles ≤1 micron
- Differential Pressure Indicator: Standard
- Flow Meter: High-accuracy volumetric meter
- Meter Precision: ±0.2%
- Delivery Hose: 20 m aviation anti-static hose
- Hose Reel: Manual / Hydraulic driven
- Refueling Nozzle: Underwing pressure nozzle with deadman handle
Control & Safety Systems
- Deadman Control System (automatic fuel cut-off)
- Emergency Stop Button (external & cabin control)
- Bonding & Grounding Reel (anti-static discharge)
- Flame Arrestor
- Pressure Relief Valve
- Bottom Emergency Valve
- Fire Extinguishers
- Interlock Protection System (pump & valve linkage)
Safety design complies with international aviation fuel handling practices.
Structural Advantages
Optimized Weight Distribution
Balanced tank design ensures stable driving performance even under full load conditions.
High Flow Efficiency
Rapid fuel discharge reduces aircraft turnaround time.
Superior Filtration Protection
Dual-stage separation prevents water and particulate contamination.
Flexible Configuration
Capacity, metering system, and tank material can be tailored to project requirements.
Compact Airport Maneuverability
4×2 chassis allows easier movement in narrow apron environments.
Operational Applications
The 4×2 Aircraft Refueling Truck is ideal for:
- Regional airports
- Private aviation terminals (FBO)
- Military aviation bases
- Helicopter refueling operations
- Aviation fuel distribution companies
- Aircraft repair and maintenance stations (MRO)
Suitable Aircraft Types
- Narrow-body passenger aircraft
- Business jets
- Cargo aircraft
- Helicopters
- Training aircraft
Optional Equipment
- Digital fuel management system
- Flow meter with integrated printer
- Electronic batch control system
- Bottom loading coupler
- API adaptor
- Explosion-proof lighting
- Aluminum ladder & top walkway
- GPS monitoring system
Frequently Asked Questions
What aviation fuels are compatible?
Designed for Jet A-1 and other standard aviation turbine fuels.
Can the truck be configured for hot refueling operations?
Yes, the system can be configured according to operational safety requirements.
What is the standard delivery hose length?
20 meters, customizable upon request.
Is an aluminum tank recommended?
Yes, aluminum alloy tanks are lighter and offer better corrosion resistance for aviation fuel.
How is fuel cleanliness ensured?
Through a two-stage filtration and water separation system with pressure monitoring.
Can branding or company logo be customized?
Yes, exterior paint scheme and logo can be customized.
What warranty is provided?
12 months warranty for tank and refueling system; chassis warranty according to manufacturer policy.
After-Sales & Support
- Installation and commissioning guidance
- Operation training materials
- Spare parts availability
- Technical troubleshooting support
- Long-term maintenance advisory
