High-Efficiency 6X4 Hydraulic Fracturing Truck for Oil Extraction

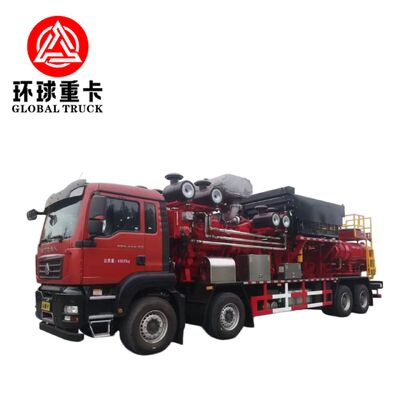

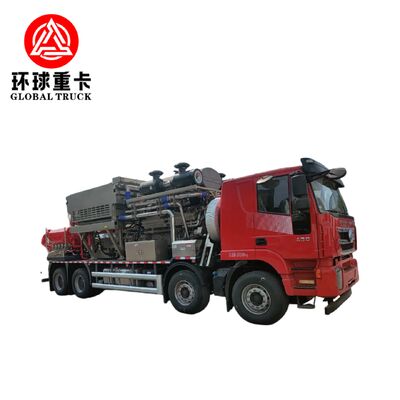

The XYLC2500 8×6 Intelligent Hydraulic Fracturing Truck is a high-performance mobile stimulation unit developed for large-scale unconventional reservoir development projects. Designed for shale gas, tight oil, and deep horizontal wells, this system integrates advanced power generation, high-pressure pumping, and intelligent control systems on a reinforced oilfield chassis.
Equipment Overview
This intelligent hydraulic fracturing truck combines a 2,500 horsepower power module, high-pressure triplex plunger pump, advanced transmission assembly, and intelligent control system onto a reinforced 8×6 oilfield chassis. Engineered for high reliability, operational continuity, and pressure stability under demanding field conditions.

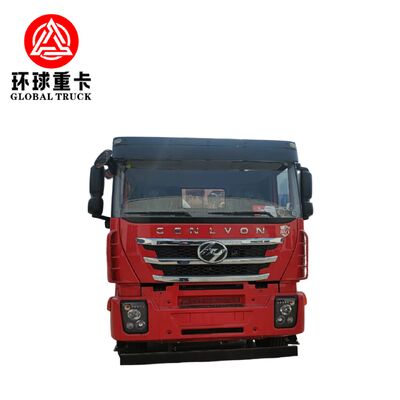

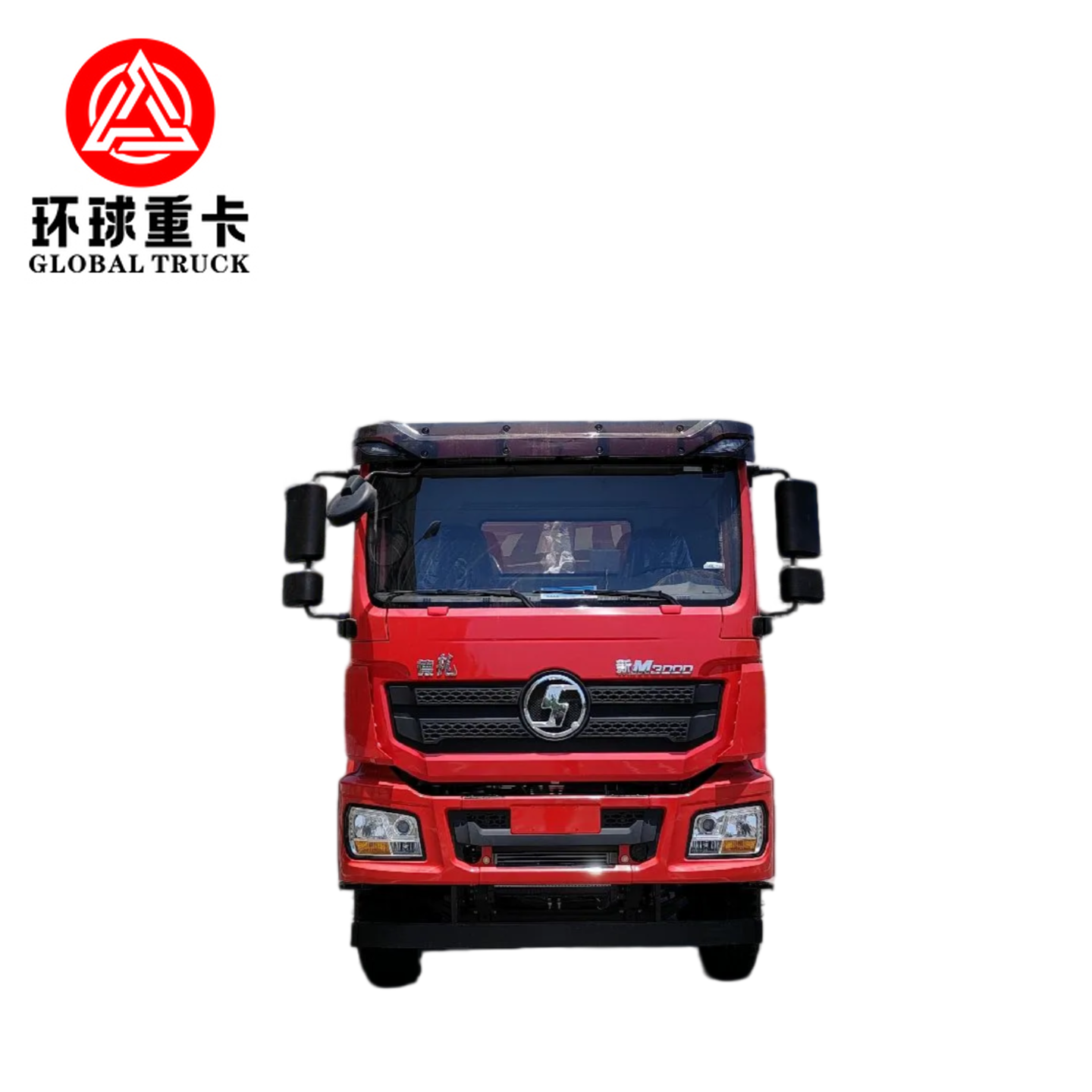

Heavy-Duty Oilfield Chassis
- Drive Configuration: 8×6
- Chassis Engine Power: 460-520 HP
- Transmission: Heavy-duty multi-speed gearbox
- Axle Structure: Reinforced oilfield-grade drive axles
- Frame Type: High-strength alloy steel frame
- Suspension: Heavy-load leaf spring system
- Tire Specification: Oilfield off-road radial tires
- Maximum Travel Speed: 70-80 km/h
- Operating Terrain: Desert, plateau, mountainous, and muddy drilling sites
The 8×6 configuration enhances traction, load capacity, and overall operational stability.
Power Generation Module
Main Fracturing Engine
- Rated Power Output: 2,500 HP
- Engine Type: Industrial turbocharged diesel
- Cooling System: High-efficiency radiator with forced circulation
- Air Filtration: Multi-stage heavy-duty air filtration
- Continuous Operating Capacity: Designed for long-duration pumping cycles
Drive & Transmission System
- Industrial heavy-torque transmission
- PTO-driven pump engagement
- Reinforced drive shaft system
- Flexible high-load couplings
- Anti-vibration mounting structure
The power transmission system ensures efficient torque delivery and operational smoothness.
High-Pressure Pumping System
- Pump Type: Triplex plunger fracturing pump
- Maximum Working Pressure: Up to 15,000 psi
- Maximum Displacement: Adjustable per stimulation design
- Fluid End: Forged and heat-treated alloy steel
- Plunger Material: High-strength wear-resistant alloy
- Lubrication Method: Forced lubrication system
- Safety Devices: Pressure relief valve and rupture protection disc
The pump assembly supports high-pressure, high-volume fracturing fluid injection.
Intelligent Control & Monitoring
- Centralized operator control panel
- Digital pressure monitoring
- Real-time flow rate display
- Engine performance monitoring
- Automatic alarm system
- Emergency shutdown control
Optional advanced configuration includes digital data acquisition and remote monitoring for integrated fracturing fleet management.
Operational Applications
The XYLC2500 fracturing truck is designed for:
- Shale gas reservoir stimulation
- Tight oil reservoir fracturing
- Multi-stage horizontal well operations
- Deep vertical well stimulation
- High-pressure acid fracturing
- Water-based and slickwater fracturing
It can function independently or as part of a multi-unit fracturing spread.
Engineering Highlights
High Power Output Stability
2,500 HP deck engine ensures consistent high-pressure pumping capacity.
Enhanced Structural Durability
Reinforced chassis and heavy-duty pump components increase service life.
Thermal Performance Optimization
Cooling system supports continuous operation in high-temperature environments.
Maintenance-Oriented Layout
Modular arrangement of key components simplifies inspection and servicing.
Adaptability to Extreme Conditions
Optional packages for cold weather and desert climates.
Safety & Protection Mechanisms
- Automatic overpressure shutdown
- Engine overspeed protection
- Hydraulic system overload monitoring
- High-pressure pipeline safety monitoring
- Emergency stop system
- Onboard fire suppression equipment
Designed in accordance with oilfield operational safety practices.
Optional Configuration Packages
- Intelligent fracturing cabin with digital interface
- Remote telemetry and data transmission system
- Winterization kit (low-temperature operation)
- High-temperature desert cooling upgrade
- Noise reduction enclosure
- Corrosion-resistant piping system
- Automated lubrication system
Frequently Asked Questions
What does the "2500" specification indicate?
It represents the rated horsepower of the fracturing power unit.
Can this equipment support multi-stage horizontal wells?
Yes, it is designed for high-pressure multi-stage stimulation operations.
What is the maximum pressure capacity?
Up to 15,000 psi, depending on configuration.
Is the system suitable for fleet integration?
Yes, it can operate synchronously with other fracturing units.
Can the configuration be customized?
Yes. Power rating, control system, environmental packages, and structural upgrades can be tailored to project requirements.
